Charger/Trickle Charger DC-CTC24

Charger and Trickle Charger for Ni-Cd and Ni-MH Cells and Packs

An innovative way of charging, ensures an optimal charging procedure out of each state of charge up to the maximum capacity and maintenance of charge. The uncomplicated construction without setting the voltage or the current makes it easy for everybody, even if not very familiar with the handling of technical equipments. The battery has only to be connected by adapter to the electronic part.

Description: charging-trickle charging
The charging current is interrupted by discharge pulses and phases of measurement . The cells are measured permanently until they have received their maximum voltage (ÄU Charging process). The charging current will be switched off and the cells have a resting phase of 12 – 20 hours. After that, a new phase of charging will be made. Through the charging current, oxygen bubbles at the electrodes are generated, which will be dissolved and re-combined through the discharge pulses. The formation of macro-grained crystals will be avoided through this chemical active substance. The cells keep their capacity and the internal resistance of cells does not rise. A pre-discharging is not necessary with this charging process. The memory effect will not become possible and the cells will not be overcharged.

Description of device

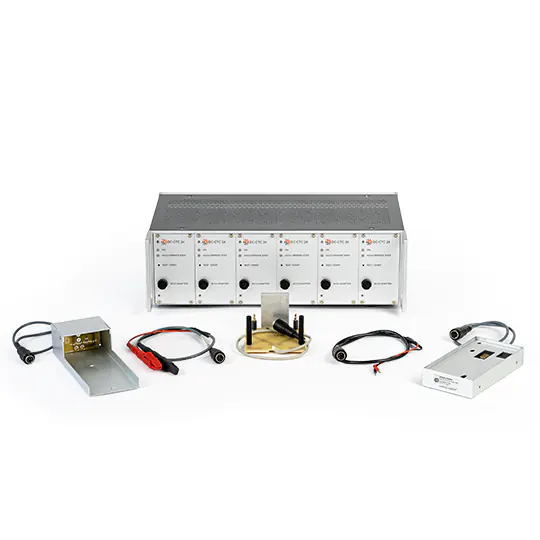

The electronic part for charging and trickle charging (for 1 to 24 cells) is programmed on an Eurocard. The Eurocard is fitted with a power-supply transformer and designed as a tray, suitable for a 19“ housing. Inside of a 19“ housing there can be installed up to 6 electronic trays. The battery-cells or packs with several cells are connected through an adapter to the device. In the plug of the connecting cable, the charging current is adjusted through bridges. The actual operation-status is shown by the respective LED’s.

Installation and operation of the device
The device is designed for the operation in dry rooms only. It should be protected from direct sunlight and high temperatures. For a ventilation to cool the electronic part, the louvers must be kept free. The device is to be connected according to the instructions on the type label.

Product Information
Charger/Trickle Charger DC-CTC24

Play

Product Video
Proponent English

Play

Vídeo del producto
Proponent Español

Play

产品视频
Proponent 中文

trickle-charger-dc-ctc24_1-2
trickle-charger-dc-ctc24_2-2
trickle-charger-dc-ctc24_3-2
trickle-charger-dc-ctc24_4-2
Part Number
Type/Desc.
Mfr
RFQ
DC-CTC-3214-3X
Batteriehalter
PBS
- +
DC-CTC-D717-01-100
Batteriehalter
PBS
- +
DC-CTC-2013-1A
Battery holder
PBS
- +
DC-CTC24-61-0478-1/9
DC-CTC-61-0478-1/9
PBS
- +
DC-CTC24 Halter
DC-CTC24
PBS
- +
DC-CTC24-18-S104
DC-CTC24-18-S104
PBS
- +
DC-CTC24-301-2001
DC-CTC24-301-2001
PBS
- +
DC-CTC24-301-3017
DC-CTC24-301-3017
PBS
- +
DC-CTC24-61-0478-1/11
DC-CTC24-61-0478-1/11
PBS
- +
DC-CTC24-61-3800-1
DC-CTC24-61-3800-1
PBS
- +
DC-CTC24-P4-01-0049
DC-CTC24-P4-01-0049
PBS
- +
DC-CTC24
Lade-/Frischhalteger
PBS
- +
DC-TC80 QD
Trickle Charger
PBS
- +
DC-TC60 US
Trickle Charger
PBS
- +
DC-TC80
Trickle Charger
PBS
- +
DC/F1-4
Trickle Charger
PBS
- +
DC-TC50 (115V)
Trickle Charger
PBS
- +
DC-TC50 I
Trickle Charger
PBS
- +
DC-TC50-1
Trickle Charger
PBS
- +
DC-TC50-2
Trickle Charger
PBS
- +
DC-TC50E/7
Trickle Charger
PBS
- +
DC-TC60 EU
Trickle Charger
PBS
- +
DC-TC60 QD
Trickle Charger
PBS
- +
RFQ
