DC-CA 1000 CAL-BOX

Ultra-precise, portable shunt technology for professional on-site calibration of the DC-CA 1000 Charger/Analyzer

Find a part

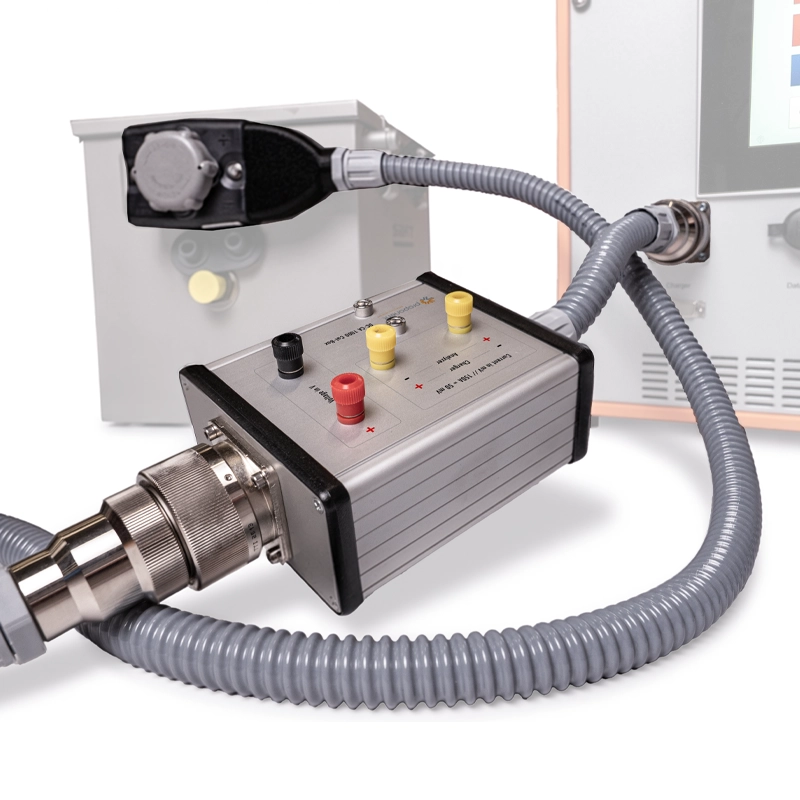

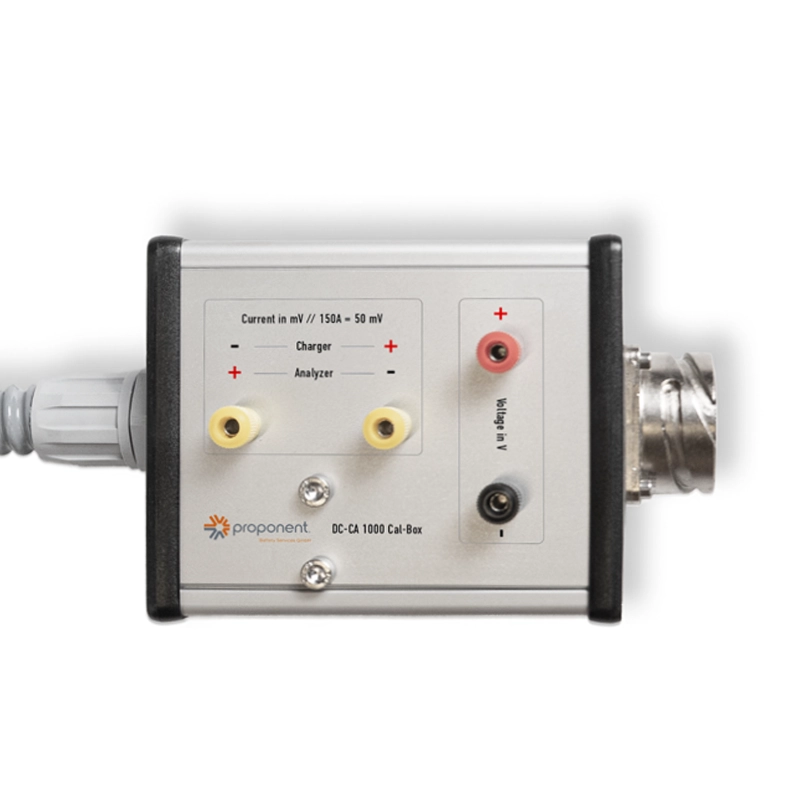

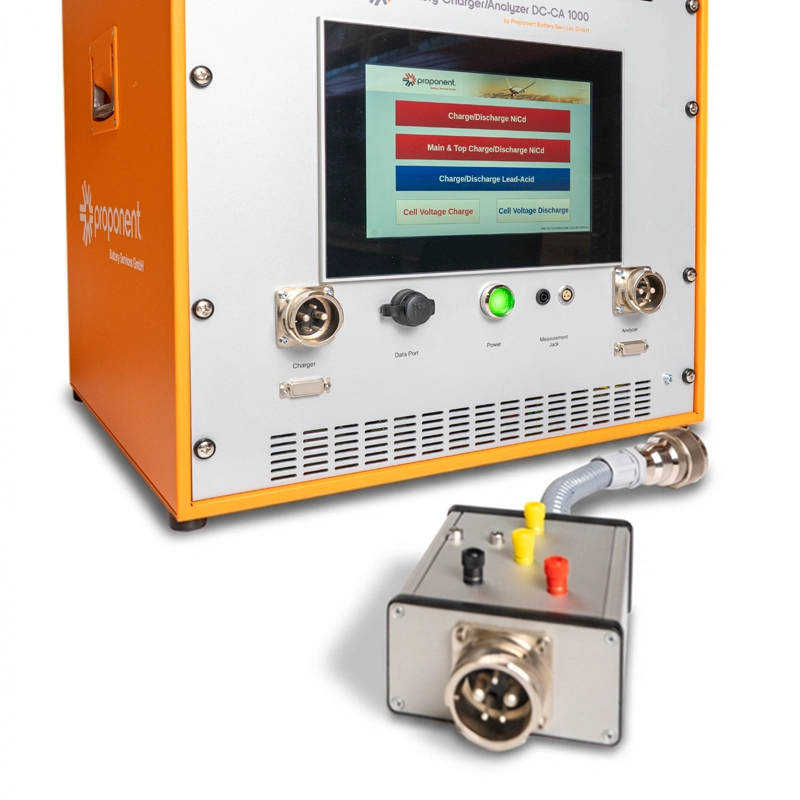

The DC-CA 1000 CAL-BOX is a compact precision instrument designed for on-site calibration and verification of the DC-CA 1000 Charger/Analyzer, eliminating the need for factory returns.

Product Information DC-CA1000 CAL-BOX

Key Features & Specifications

  • High Precision: Features advanced shunt technology with ≤ ± 0,02% linearity and calibration uncertainty (k=2) at 23 °C.
  • Performance: Converts load current to a precise signal (50 mV at 150 A). Supports 0 to ± 100 A continuous current (150 A peak) and 0 to ± 60$ VDC.
  • Portable Design: Housed in a durable aluminum casing, weighing only 1.2 kg with dimensions of 120 x 103 x 53 mm.
  • Target Audience: Ideal for service technicians, calibration labs, and QA teams requiring traceable, mobile testing solutions.
